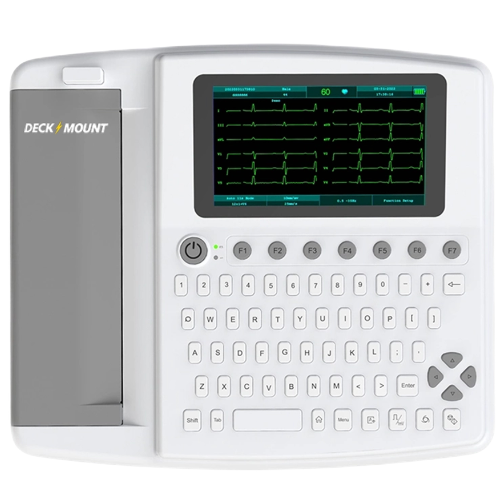

12 LEAD ECG MACHINE

+ Free Shipping

Auto Record:-25mm/s, 50mm/s, error ±5% [Record setup according to auto record format and mode, automatically changing leads, measuring and analyzing]
CMRR:-60dB, ≥100dB [Add Filter] Description:-8″ LCD display with Touch screen EMG Interference Filter:-35Hz [-3dB] Frequency Response:-0.05 ~ 150Hz [-3dB ~ 0.4dB] Input Impedance:-≥50MΩ Input way:-Floating and Defibrillation Protection
Lead:-Standard 12 leads Machine Net Weight:-2.25Kg
Manual Record:-5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s, error ±5% [Record setup according to auto record format and mode, manual changing leads]
Noise Level:-≤15μVp-p Product Safety Type:- Class I CF applied part, there is defibrillation and pacing protection circuit in it Recording:-Auto, Manual and Rhythm
Recording Way:-Thermal Printing System Sensitivity Selection:-5, 10, 20, 40 mm/mV, [Error ±5%], Standard sensitivity is 10mm/mV ±0.2mm/mV Time Constant:-Time ≥3.2s Ending Polarization Voltage:-±5OOmV
Measurement Parameters:-HR, P-R interval P duration, QRS duration, T duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R[V5], S[V1], R[V5]+S[V1]

Brand	Deck Mount
Material	Plastic
Colour	White and Grey
Product Dimensions	20L x 36W x 46H Centimeters
Item Weight	2.25 Kilograms
Manufacturer	Deck Mount Electronics Private Limited
